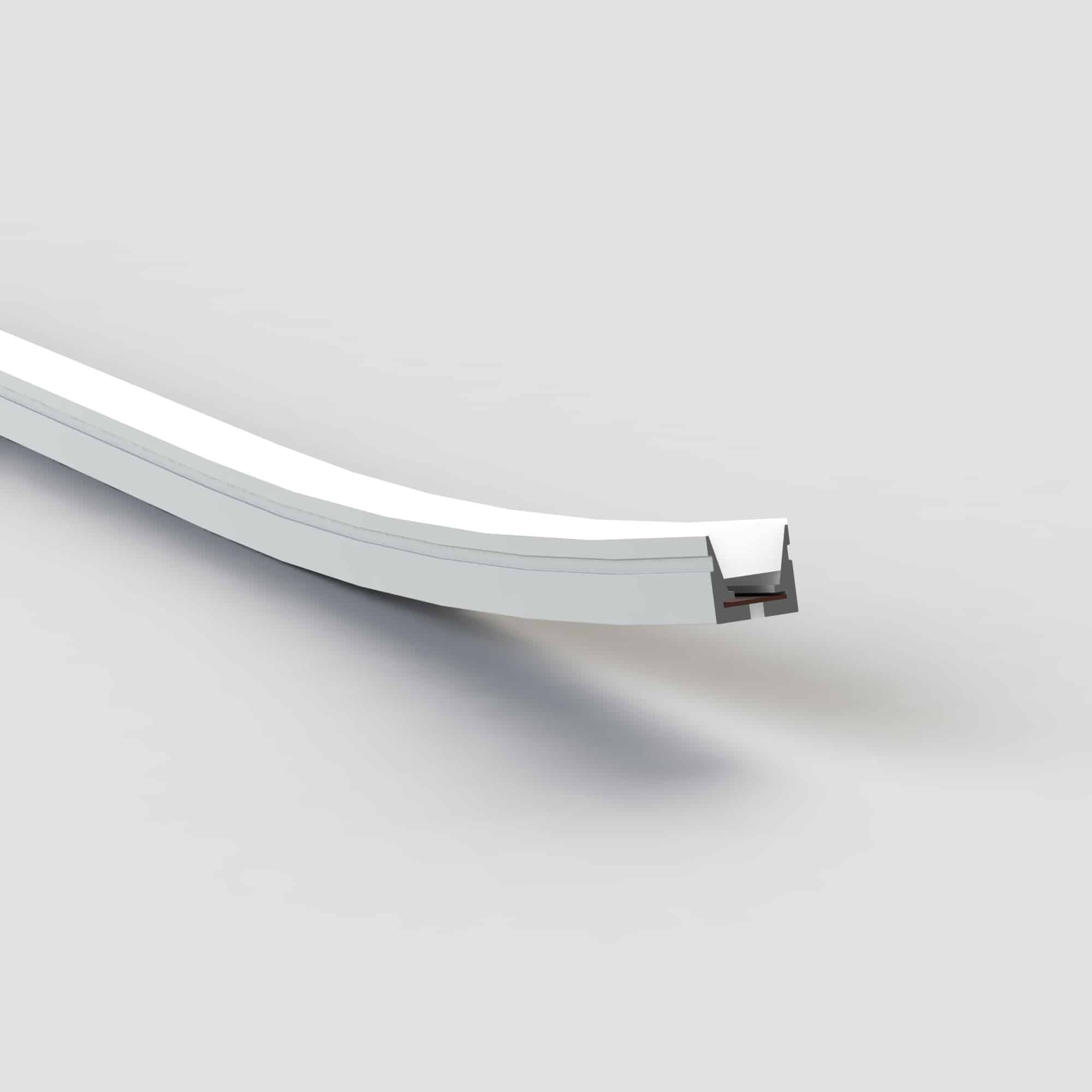

Nanofile System Silicone lighting module

Nanofile System Silicone lighting module

Modular system for diffused outdoor lighting, composed of empty profiles in anodized extruded aluminum available in predefined lengths, trimless recessed version. Side end caps with Light Proof system. To be completed with silicone light element complete with LED linear sources and with 24V power supply to be installed remotely. IP67.

Light sourceCodePowerColor temp.LumenCRIProtocolDim
LED lineNN05.827
48W
2700K

>80
On/OffL5000 mm
LED lineNN05.830
48W
3000K

>80
On/OffL5000 mm
LED lineNN05.840
48W
4000K

>80
On/OffL5000 mm
LED proNN06.827
96W
2700K

>90
On/OffL10000 mm
LED proNN06.830
96W
3000K

>90
On/OffL10000 mm
LED proNN06.840
96W
4000K

>90
On/OffL10000 mm
